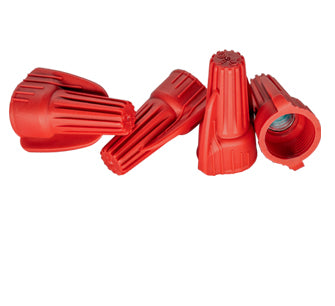

YELLOW TWIST-ON Winged Wire Connector W3 RED, UL Listed 1,000V
Color Coded Screw on wire Connectors for Quick Assembly, UL Listed 300V

   Packaged bag of 500 pcs.
   Wire combinations: No. 18 thru 8 AWG

PRODUCT FEATURES:
• Fixed Precise Conical Wire Spring, No Pre-Twisting of Conductors is Required – Spring Creates its Own
     Thread
• Reusable Screw on Wire Connector Threads On or Off splice for fast and easy circuit changes and additions
• Ribbed-Cap Provides a more Secure Grip and faster fingertip starts even when hands become slippery
• Deep Skirt Wire Entry Provides Protection from Flash-Over and Shorts
• Threaded Funnel Entry Guides Wire Into Connector Cleanly without Strand Splaying

• Temperature Rated at 221°F (105°C) maximum
• Tough, UL 94V-2 Flame Retardant Shell will not crack or break, even when applied to maximum wire
      combinations under extreme pressure

VOLTAGE RATING: 600V Max. Building Wiring; 1000V Max. in Lighting Fixtures/Luminaires and Signs

• Listed as a Pressure-Type Wire Connector on the following SOLID and/or STRANDED COPPER TO COPPER
      CONDUCTOR wire combinations:

• Overall Dimensions: 1.26'' H x 0.90'' W x 0.52'' D
