Description
- 1 meter (3.3ft) / Bar
- AC 24V Operation 21.6W / Bar
- IP66 Waterproof
- Pre-Programmed addressable RGB (chasing RGB)
- No controller required!
- Requires 24VAC transformer (200W = up to 9 bars / 500W = up to 20 bars / 1000W = up to 40 bars)
- Plug and Play Installation
These bars are very popular for theme parks, carnivals, food trucks, architectural lighting and much more! They are extremely simple to install and operate and are very reliable.

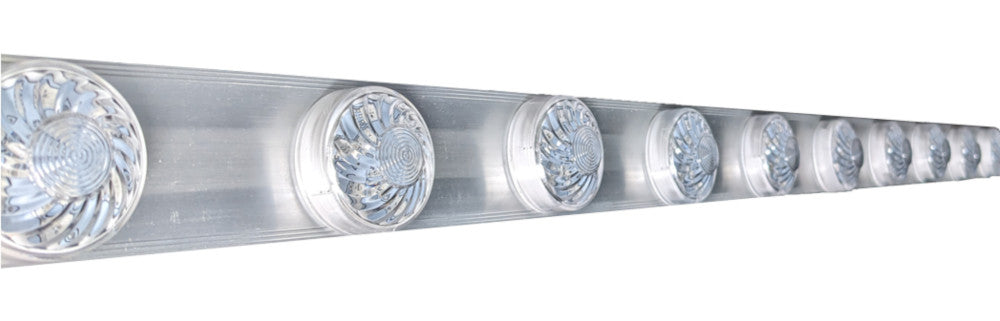

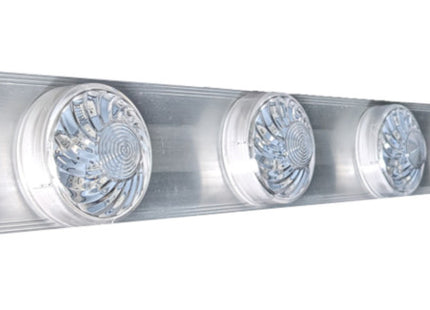

Connected in series, the Carnival LED Bars will light up on their own from the first bar to the last connected bar. Every LED bulb has it's own integrated controller, and all the connected bars will be in sequence.
No controller = high reliability & simple operation! The bars will completely light up on their own (with transformer). The lights will chase and flash all on their own, just like a carnival!
Installation:
- IMPORTANT! - All bars have a marked 'input' side with a sharpie
- Power flows from the power supply to the input side - make sure the marked side is all on the input side

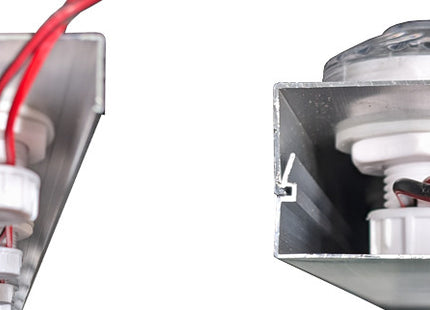

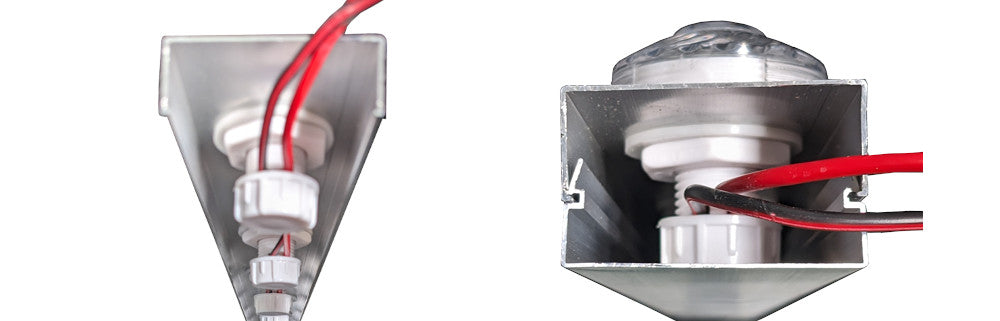

- The LED Bars have a base that clips off (for mounting to any surface). Mount the base to your surface with adhesives or hardware, then clip the face with LED on the base
- That is all for installation - as long as the bars are connected to the transformer, they will light up automatically. You may install a switch as well (120VAC Input or 24VAC Output)
