Description

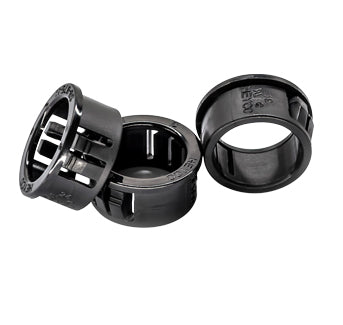

7/8'' HEYCO SNAP BUSHING, UL Component
Multiple Locking Steps for Panel Thickness up to 1/8''
PRODUCT FEATURES:
- Convert raw-edged holes to smooth, neat, insulated holes.
- Insulate and mechanically protect electrical cables, tubing, hose, rope, and utility lines.
- Locking fingers snap into holes with fingertip pressure.
- Withstand a push back force of 35 pounds.
- Temperature Range -0.4°F (-18°C) to 221°F (105°C)
- Tough, UL 94V-2 Flame Retardant Nylon 6/6 will not crack or break.
PRODUCT DIMENSIONS:
- Overall Dimensions: 0.95'' (24.13mm) D x 0.45'' (11.43mm) H
- Inside Diameter: 0.69'' (17.53mm)
- Head Diameter: 0.95'' (24.13mm)
- Mounting Hole Dia: 0.875'' (22.23mm)
CERTIFICATIONS:
- UL Recognized under the Component Program of Underwriters' Laboratory File E12331
